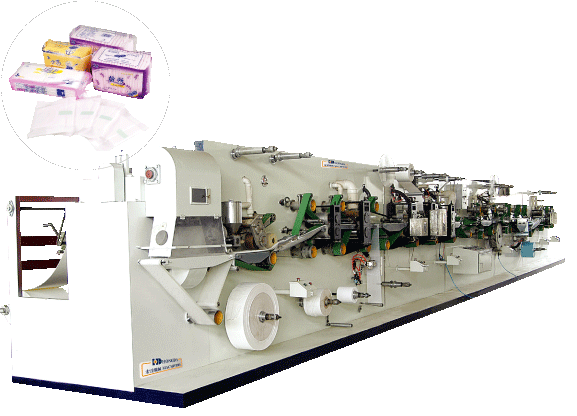

HD-WSJ-KB-A Double Wings Sanitary Napkin Machine With Fast & Easy Packing





1.Cotton core formed by one-time crushing pulp , even and level off,weight can be adjustted.
2.Independent fast and easy packing of the better appearance , increasing the class of the produce.
3.Special vertical and horizontal turning device meets needs of fast operation.
4.With the function of equidistance rectify.
5.Italic wrapping and pressing , prevent cotton core from breaking and dislocating.
6.Conduction before enclosure , clear channel and not damage pe-film , avoiding leaking.
7.All major parts are equipped with electrical  speed equalizer adjustting the phase without stopping machine.
8.Packing with cutter and sealing  integrated and cut precisely.
9.Adopt gear box transmission by timing belt , makes good synchronous and high qualification.
10.Cotton core napkin  tissue napkin , triple style napkin can be made.


1.Power: 380V 50Hz
2.Rate Power: 38KW (with two gluing machine)
3.Capability:250 pieces/min
4.Air Wastage:1000litre/min   Air pressure(8-10) Bars
5.Qualification:≥97%
6.Size (m):17×1.8×2.8(L×W×H)
7.Weight:15T
